20 ZIEMANN BAUER 3800 HL TANKS

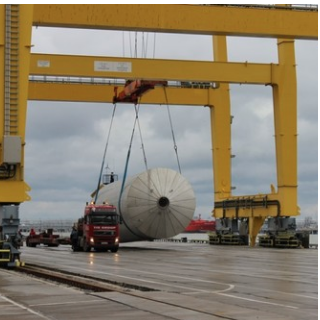

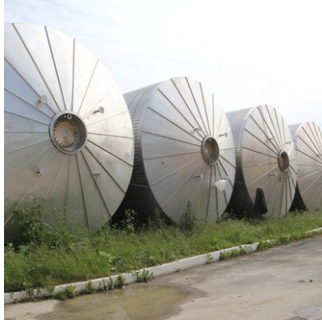

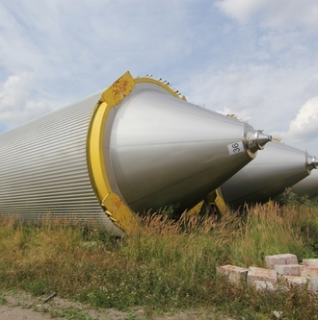

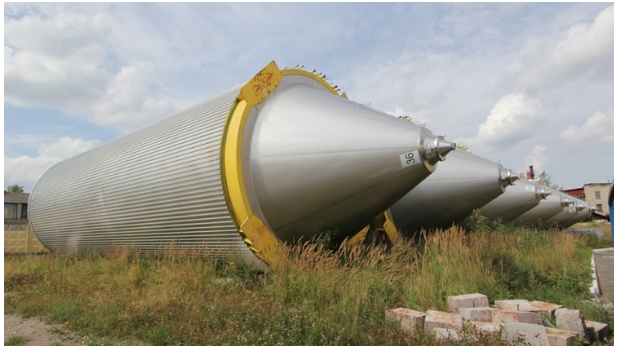

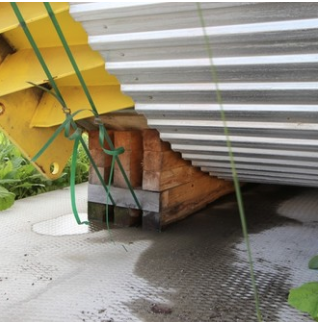

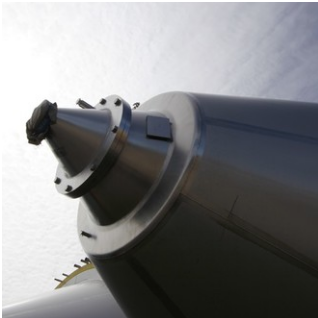

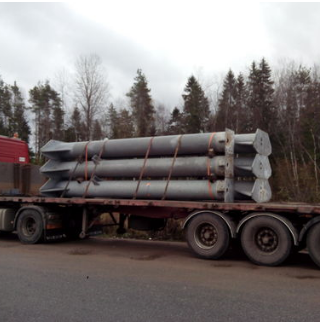

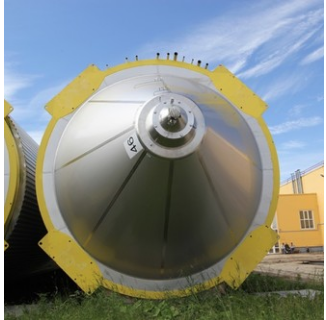

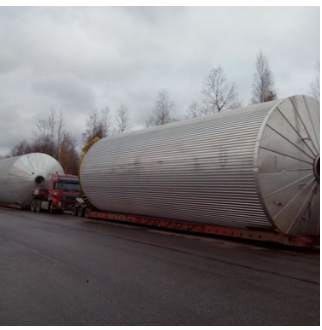

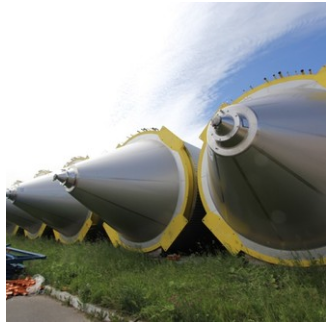

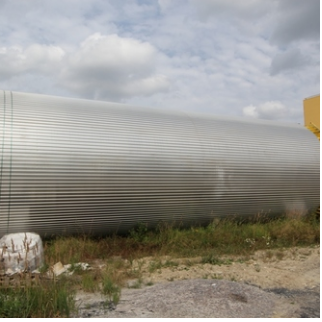

20 Ziemann Bauer Tanks are available, all of which were dismantled in 2013 and now asshown in attached pictures. We have delivered two of these same tanks earlier this year – see attached pictures. Attached also a tank drawing with main dimensions and cooling zones.

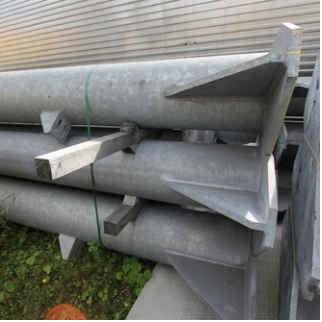

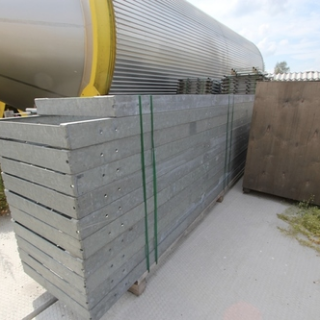

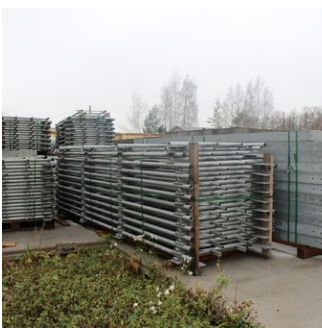

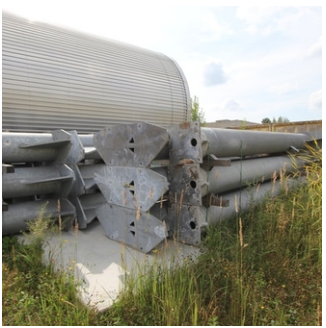

The tanks are made by Ziemann-Bauer in 2004, and were dismantled in 2013. Original tanksupport structures are a part of this delivery, tanks include CIP system for washing, C02system and valves , vacuum valves and security valve for over pressure as well as level andtemperature (in 584 hl level) sensors. Steal structure on the top is included in the delivery.All tanks are in very good condition
Manufacturer: Ziemann-Bauer GmbH
Manufacturing year: 2004
Total number of CCTs available: 20 pcs
Tank type: Insulated vertical CCT
Tank volume, total: 4734 hl
Tank volume, net: 3800 hl
Number of cooling zones: 2 + 1
Designed cooling media: Glycol – water solution
Max working pressure: 1.46 bar
Min working pressure: 0.69 bar
Total height: 23200 mm
Diameter: 5800 mm
Vessel weight: 27500 kg
LINE TECHNICAL DRAWINGS
NOTE: The owner reserves the right to decline the deal if the end user is his direct competitor
Price: On request Euros ex works as is excluding dismantling, packing and loading.
Information is for guidance only.
The information provided is for guidance only and the buyer should check all details upon inspecting the line
