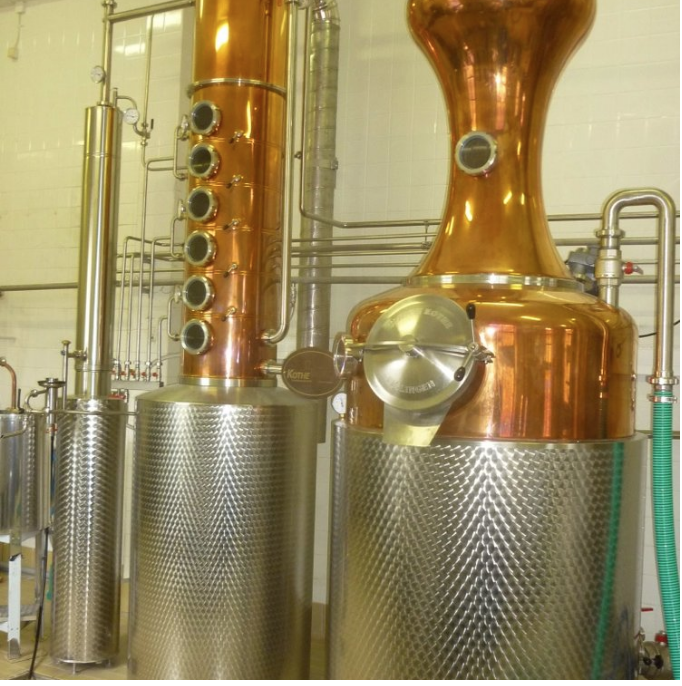

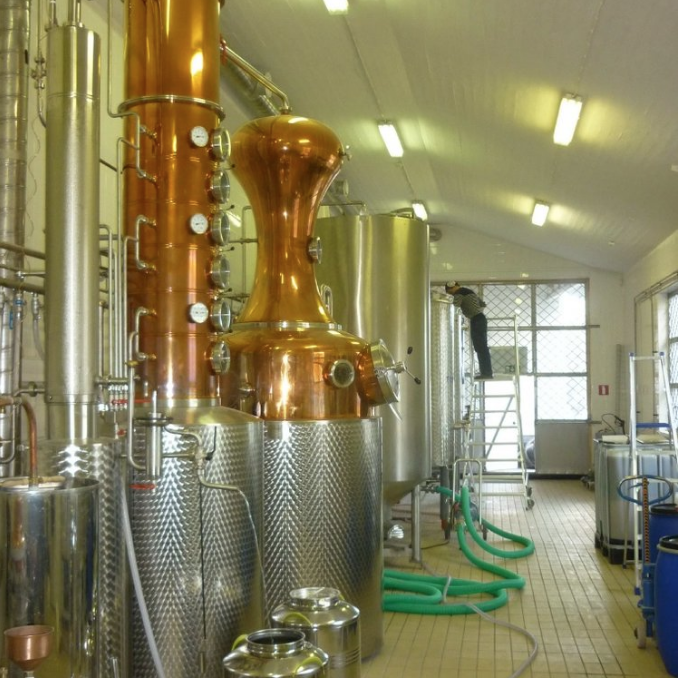

• Side mounted special distillation column
• According to European Regulation 97/23/EG
• Potstill, Ø 1200mm, made of special high quality copper material, highly-polished and smooth (quality according to hammered copper), 4mm thick..
• Fill capacity: 1000ltr
• Fill opening: Ø 400mm
• Discharge: Ø 300mm and 4″ ball valve
• Indirect heating: water bath in stainless steel
• Shaped helmet: connected using stainless steel flanging without visible screws or gaskets inside or outside. with viewing glasses and thermometer.
• Superaromator: (special distillation column) Ø 500mm, 1500mm high with 3 bubble caps.
• Bubblecaps: new construction with increased copper surface and turbulent motion of the liquid. Free adjustable fluid level on distillation plates – flexible adjustment of alcohol content and aroma of distilled mash.
• Including a pre-condenser in the head of the column (dephlegmator)
• Inspection-glases: 4 viewing windows of NW 125 for each bubble cap and mash return.
• Stainless steel condenser: made of V4A material, Ø 220mm, 2000mm high with automatic cooling with a thermostatic regulator valve.
• Safety features: overflow, vacuum breaker, pressure gauge, auto-air-out, steam trap and dirt filter.
• Spirit piping, outflow device for distillate and water installation: completely made of stainless steel
• Method of heating: Oil fired.

ADDITIONAL SPECIAL BUBBLE CAP

• With continuously variable level control cooking

INSULATION OF MANTLE

• And covered water bath (For Oil Burner)

FIREBRICKS WITH PRESSURE-SWITCH

• Control for oil or gas burner

3 – WAY VALVE HELMET – COOLER

• Or, helm – column – cooler

AGITATOR 2 KW 150 RPM

• Complete stainless construction

CIP-CLEANING SYSTEM

• With force pump
• Stainless-steel cleaning injectors in the pot (rotating),
• boiling-plates, helm, dephlegmator,
• return-tube for the mash
• transposable for circulating-cleaning
• with pressure-switch for automatic activate and deactivate by water-demand
• Technical characteristics:
  • operating pressure: max. 8 bar
  • delivery rate: max. 8 mÑ/h

HOT WATER TANK FOR CLEANING SYSTEM

• Stainless steel 500 ltr. with 2 viewing windows,
• Foundation for the aromator

BOTANICAL POT FOR HERBS AND SEEDS

• In the line from helmet to the condenser
• with 3 – way valve, return to the pot and removable botanical basket



Price: On request Euros, GBP or USD ex works as is excluding dismantling, packing and loading. Information is for guidance only. Please contact us if you are interested
